Introduction to RStudio and your first graphs

Exercises

🧠 Emotion‑Regulation Example

The goal

A sample of 62 first‑year psychology students completed the “Emotion Regulation Questionnaire” and were classified according to their primary emotion‑regulation strategy. You are going to type data in R, summarise and plot it.

The data are as a frequency table:

Frequency of primary emotion‑regulation strategies in 62 students
Strategy	No. students
Cognitive Reappraisal	17
Expressive Suppression	8
Rumination	13
Problem Solving	6
Acceptance	10
Distraction	8

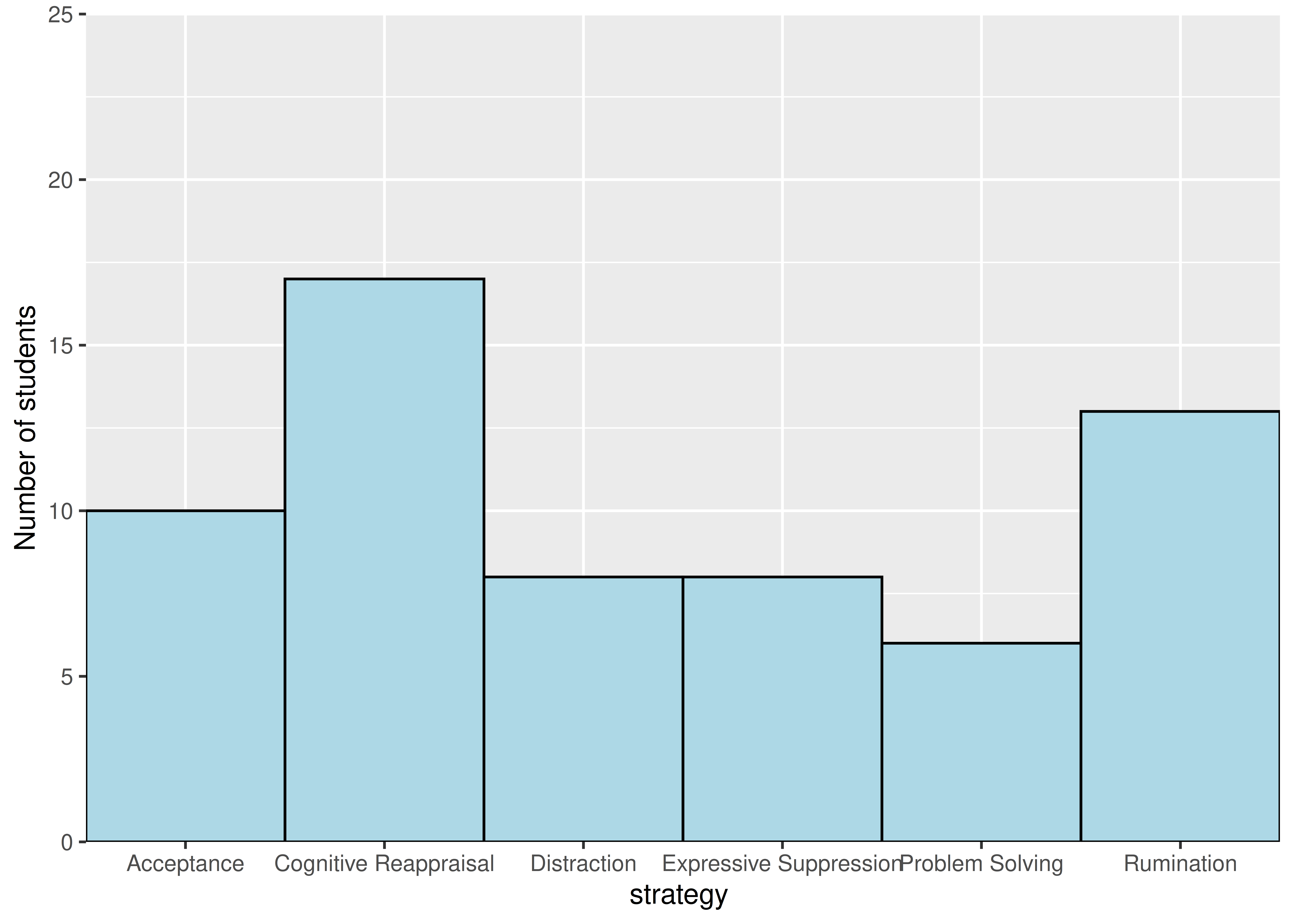

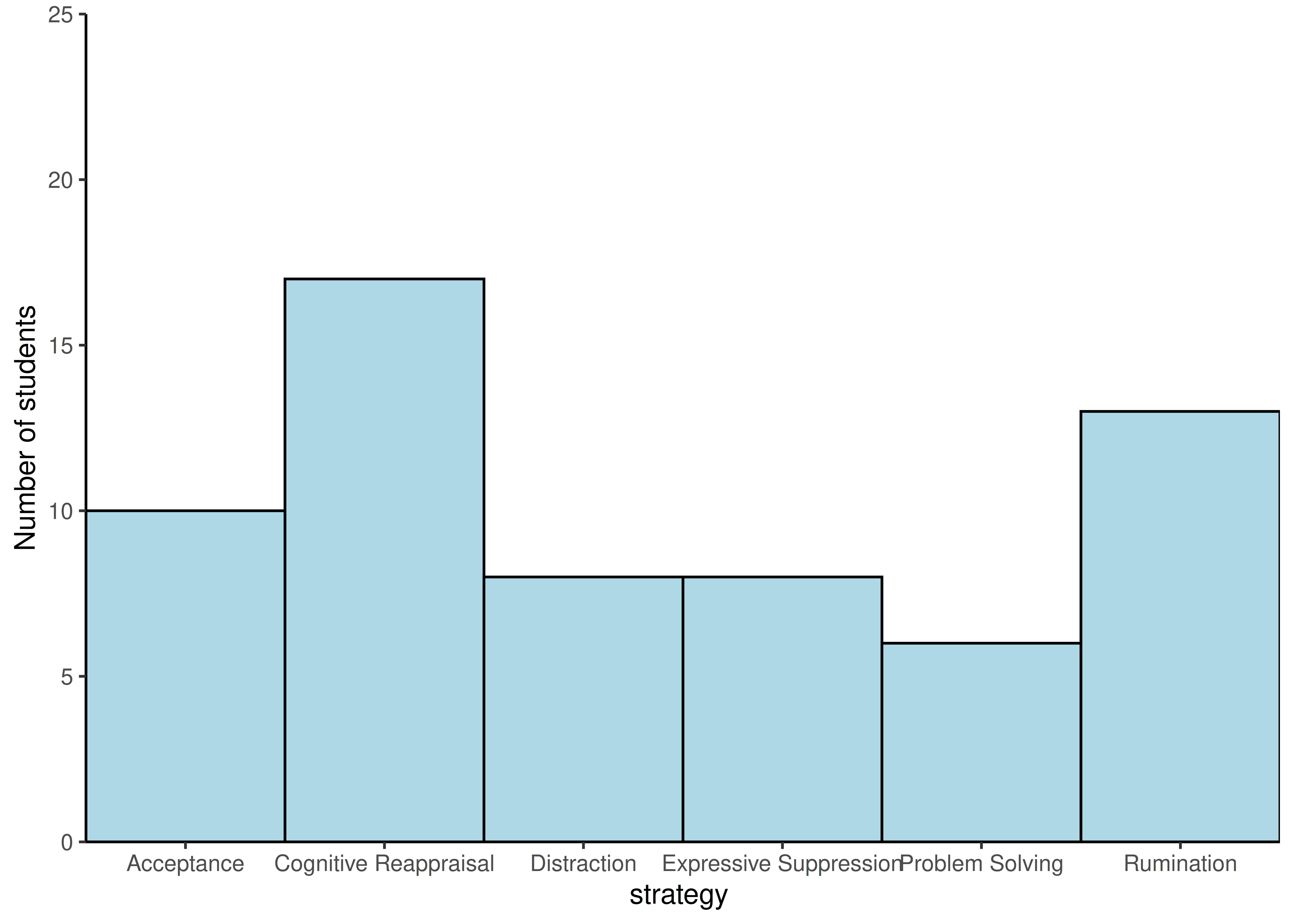

You will create a figure like this:

Creating the data

Start by making a vector called strategy that holds strategy s

Write the following in your script:

# strategy s
strategy <- c("Cognitive Reappraisal",
              "Expressive Suppression",
              "Rumination",
              "Problem Solving",
              "Acceptance",
              "Distraction")

Remember, the shortcut for <- is Alt+- (hold the Alt key down then hit the minus key ).

Notice I have used a comment. Comment your code as much as possible!

Ensure your cursor is on the line with the command and do Control+Enter to send the command to the console to be executed.

Examine the ‘structure’ of the strategy object using str()

str(strategy)

 chr [1:6] "Cognitive Reappraisal" "Expressive Suppression" "Rumination" ...

It’s vector of 6 character values, chr

Create a vector called freq containing the numbers of students with each strategy and examine it with str().

Check sum(freq) gives the answer you expect:

# the total Number of students
sum(freq)

[1] 62

Packages

Commands like c(), sum(), and str() are in packages which are part the ‘base’ R system. A package is a collection of related commands. Base packages are installed automatically when you install R.

Other packages, such as ggplot2 (Wickham 2016) need to be installed once and then loaded each session. ggplot2 is one of the tidyverse (Wickham et al. 2019) packages.

Important

If you are working on a University computer (or the VDS) you do not need to install tidyverse.

If you are working on your own computer or using RStudio cloud you do need to install tidyverse.

To install a package:

Go the Packages tab on the lower right pane. Click Install and type tidyverse into the box that appears. DO not do if working on a Uni computer.

Wait until you get the prompt back. It will take a few moments, be patient!

To use a package which is installed you have to load it with the library() function. You will need to do this whether you are working on your own computer or on a University computer

Load the tidyverse:

library(tidyverse)

You will likely be warned of some function name conflicts but these will not be a problem for you.

Plotting the data with `ggplot()`

ggplot() takes a dataframe for an argument

We can make a dataframe of the two vectors, strategy and freq using the data.frame() function.

Make a dataframe called strategy_data

strategy_data <- data.frame(strategy, freq)

Check the structure of strategy_data

Click on strategy_data in the Environment to open a spreadsheet-like view of it.

A barplot

Create a simple barplot using ggplot like this:

ggplot(data = strategy_data, aes(x = strategy, y = freq)) +
  geom_col()

ggplot() alone creates a blank plot.

ggplot(data = strategy_data) looks the same.

aes() gives the ‘Aesthetic mappings’. How variables (columns) are mapped to visual properties (aesthetics) e.g., axes, , shapes.

Thus…

ggplot(data = strategy_data, aes(x = strategy, y = freq)) produces a plot with axes

geom_col A ‘Geom’ (Geometric object) gives the visual representations of the data: points, lines, bars, boxplots etc.

Note that ggplot2 is the name of the package and ggplot() is its most important command.

Using the help manual

‘Arguments’ can be added to the geom_col() command inside the brackets.

Commands do something and their arguments (in brackets) and can specify:

what object to do it to
how exactly to do it

Many arguments have defaults so you don’t always need to supply them.

Open the manual page for geom_col() using:

?geom_col

The manual page has several sections.

Description an overview of what the command does
Usage lists arguments
- form: argument name = default value
- some arguments MUST be supplied others have defaults
- ... means etc and includes arguments that can be passed to many ‘geoms’
Arguments gives the detail about the arguments
Details describes how the command works in more detail
Value gives the output of the command
Don’t be too perturbed by not fully understanding the information

Customising the plot

Bar

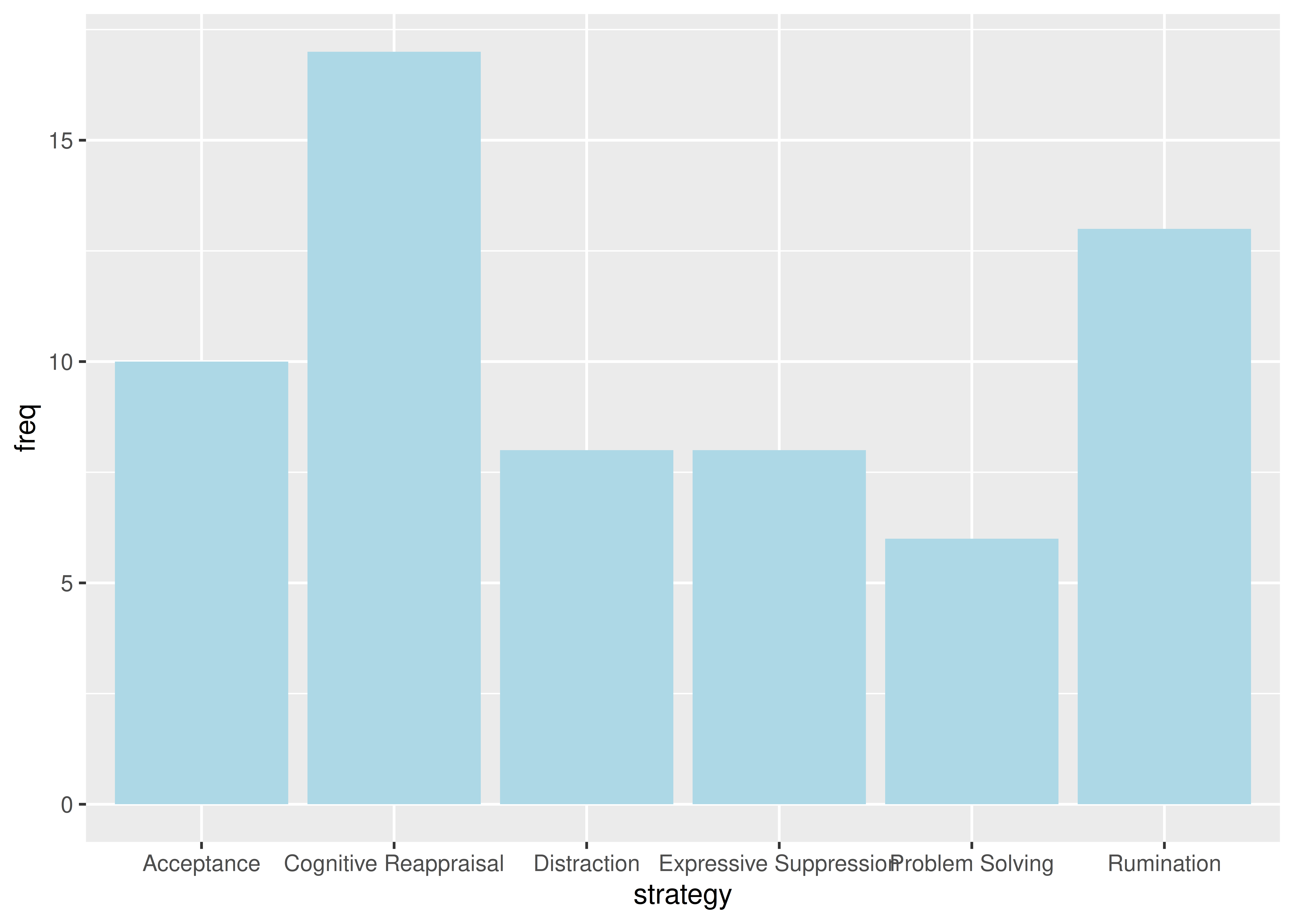

Change the fill of the bars using fill:

ggplot(data = strategy_data, aes(x = strategy, y = freq)) +
  geom_col(fill = "lightblue")

Colours can be given by their name, “lightblue” or code, “#ADD8E6”.

Look up colour by name or code

Change the bars to a colour you like.

fill is one of the arguments covered by .... fill is an ‘aesthetic’. If you look for ... in the list of arguments you will see it says:

Other arguments passed on to layer(). These are often aesthetics, used to set an aesthetic to a fixed value, like = “red” or size = 3. They may also be parameters to the paired geom/stat.

We just set the `fill` aesthetic to a fixed value.

Further down the manual, there is a section on Aesthetics which lists those understood by geom_col()

We can set (map) the fill aesthetic to a fixed inside geom_col() or map it to a variable from the dataframe inside the aes() instead. This means the will be different for different values in that variable.

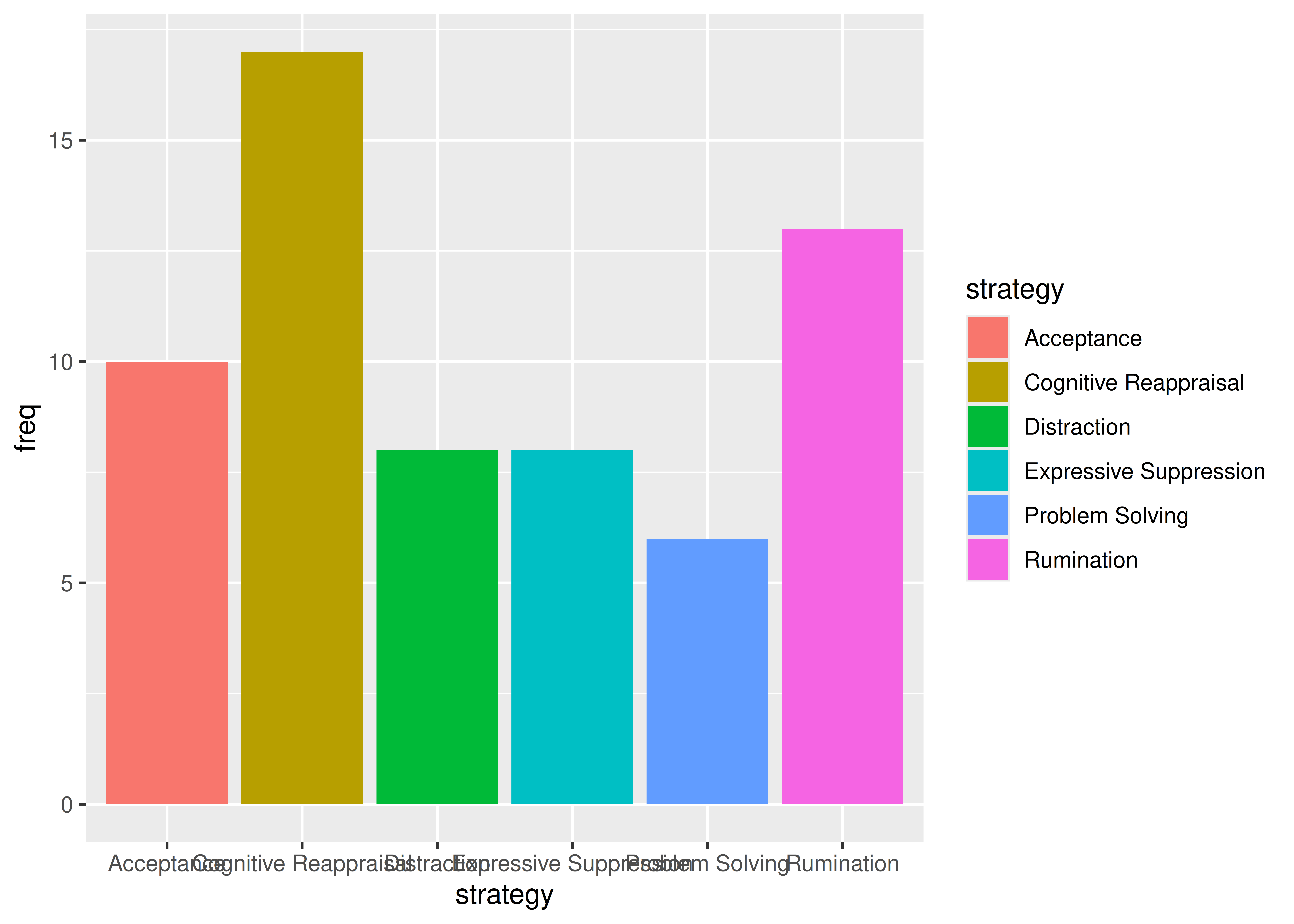

Map the fill aesthetic to the strategy variable:

ggplot(data = strategy_data, aes(x = strategy, y = freq, fill = strategy)) +
  geom_col()

Note that we have taken fill = "lightblue" out of the geom_col() and instead put fill = strategy in the aes().

Use the manual to put the bars next to each other. Look for the argument that will mean there is no space between the bars.

Use the manual to change the of the lines around each bar to black.

Changing the axes

We can make changes to the axes using:

Changes to a discrete x axis: scale_x_discrete()
Changes to a continuous y axis: scale_y_continuous()

ggplot automatically extends the axes slightly. You can turn this behaviour off with the expand argument in scale_x_discrete() and scale_y_continuous().¹

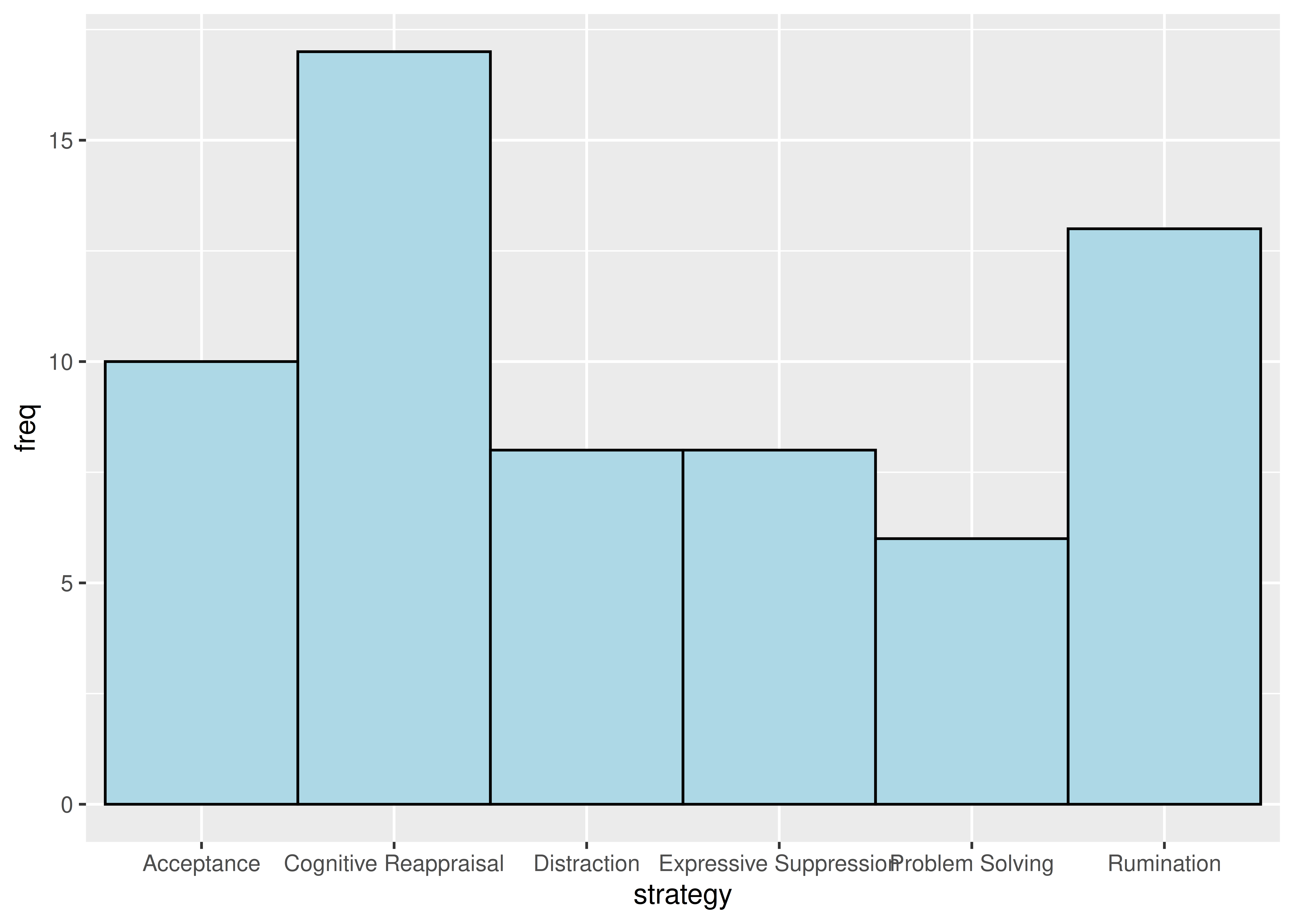

Remove the gap between the axes and the data:

ggplot(data = strategy_data, aes(x = strategy, y = freq)) +
  geom_col(fill = "lightblue",
           width = 1,
           colour = "black") +
  scale_x_discrete(expand = c(0, 0)) +
  scale_y_continuous(expand = c(0, 0))

Each ‘layer’ is added to the ggplot() command with a +

Top Tip

Make your code easier to read by using white space and new lines

put spaces around = , -> and after ,
use a newline after every comma in a command with lots of arguments

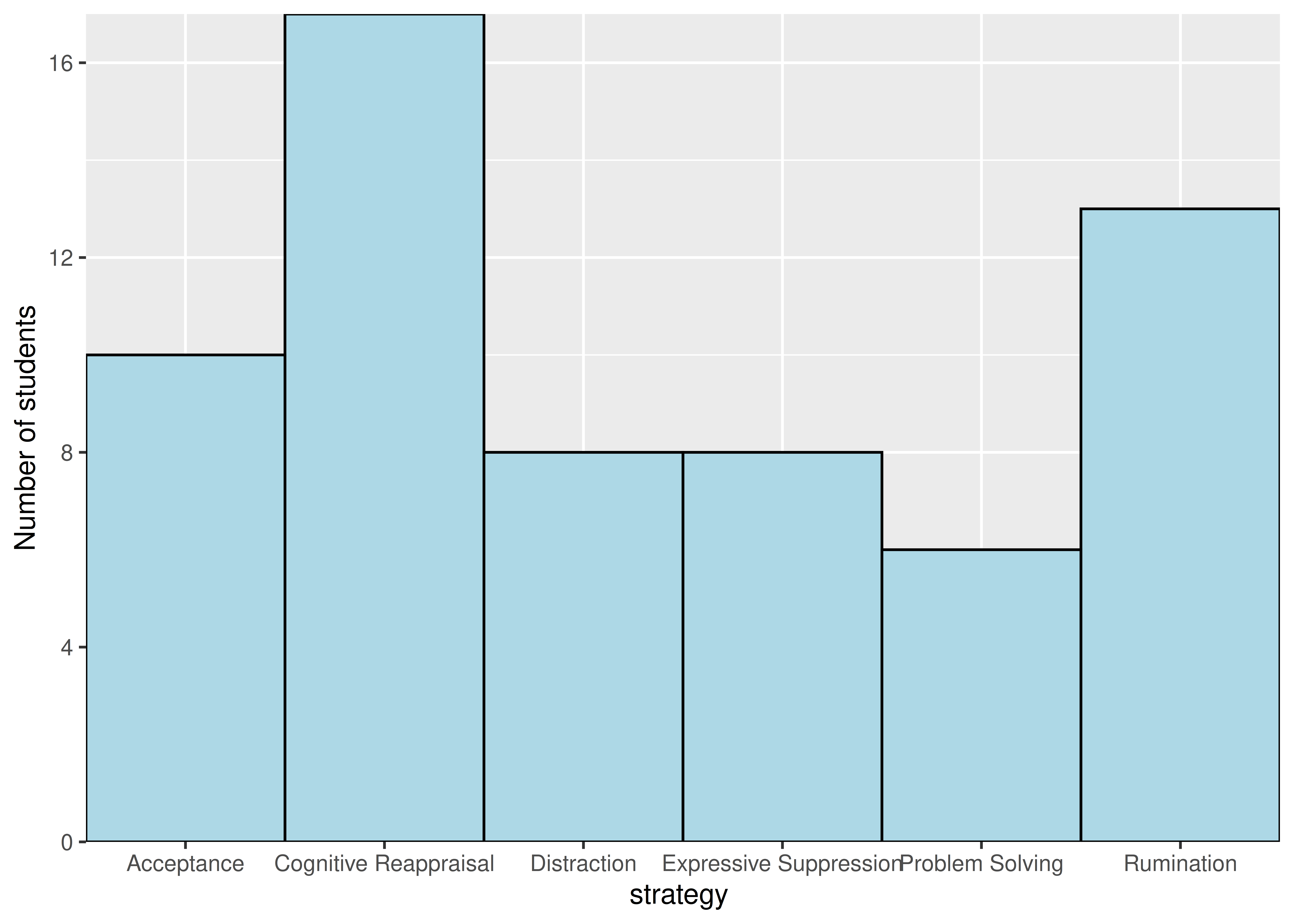

Look up scale_x_discrete in the manual and work out how to change the axis title from “strategy” to “strategy”. Also change the y-axis title.

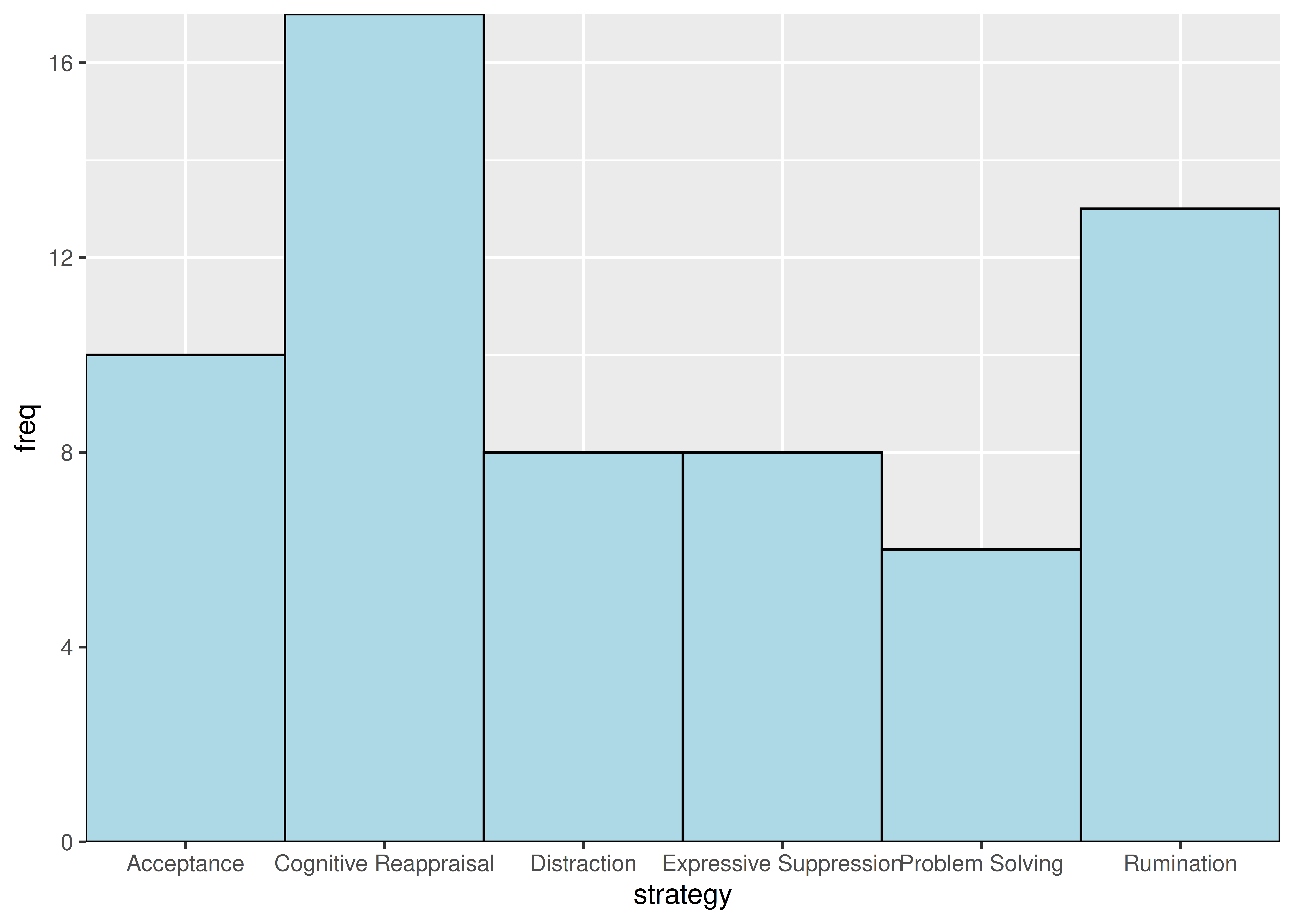

I would prefer to see the y-axis extend a little beyond the data and we can change the axis “limits” in the scale_y_continuous()

ggplot(data = strategy_data, aes(x = strategy, y = freq)) +
  geom_col(fill = "lightblue",
           width = 1,
           colour = "black") +
  scale_x_discrete(expand = c(0, 0),
                   name = "strategy ") +
  scale_y_continuous(expand = c(0, 0),
                     name = "Number of students",
                     limits = c(0, 25))

Getting rid of the grey background

The grey grid background is useful for examining plots on a screen but for a report of publication you will want a more scientific style. Every aspect of the “theme” of a plot - the non-data elements such as fonts, background s, axis line s etc - can be controlled individually² but there are some handy built in themes that apply several changes at once. One of these is theme_classic()

Add theme_classic() to the plot:

ggplot(data = strategy_data, aes(x = strategy, y = freq)) +
  geom_col(width = 1,
           colour = "black",
           fill = "lightblue") +
  scale_x_discrete(expand = c(0, 0),
                   name = "strategy ") +
  scale_y_continuous(expand = c(0, 0),
                     name = "Number of students",
                     limits = c(0, 25)) +
  theme_classic()

Changing the order of bars

The default ordering of a categorical variable like strategy is alphabetical. Often we want to change the order. For example, you might want a “Control” on the left or the categories might have an inherent order (e.g., small, medium and large). We can alter (mutate) the strategy variable using fct_relevel().

Make “Distraction” the first category:

strategy_data <- strategy_data |>
  mutate(strategy = fct_relevel(strategy, "Distraction"))

The pipe |>

|> is called the “pipe”. A keyboard shortcut is Control+Shift+M

The pipe puts the output of one command (one the left) as input to another command (on the right). It can be read as “and then”. You will more about it next week.

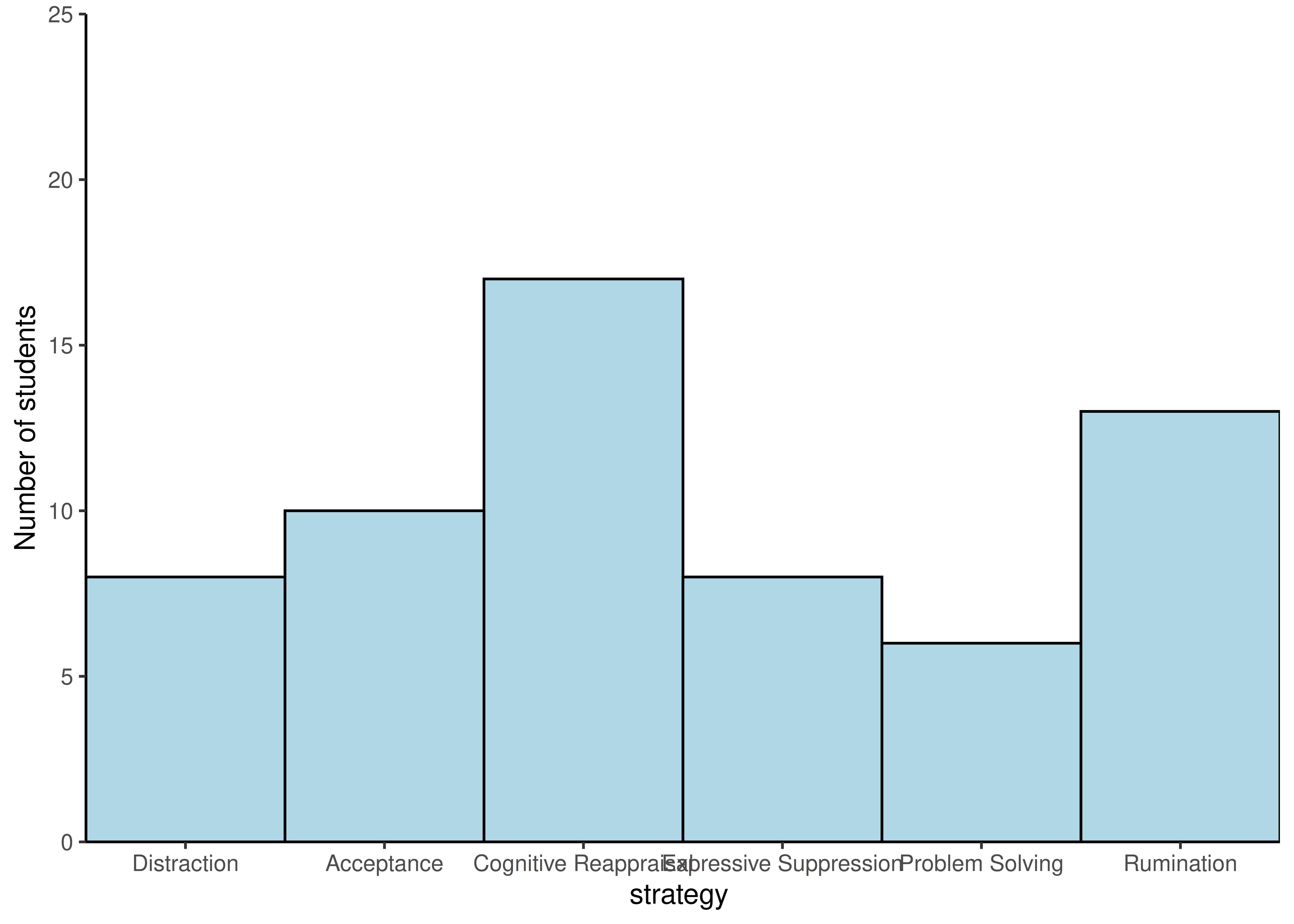

Now plot again.

If you wanted Distraction and then Rumination you would do fct_relevel(strategy, c("Distraction", "Rumination")

We can also order the categories by the values in another variable by using reorder() in the plot code.

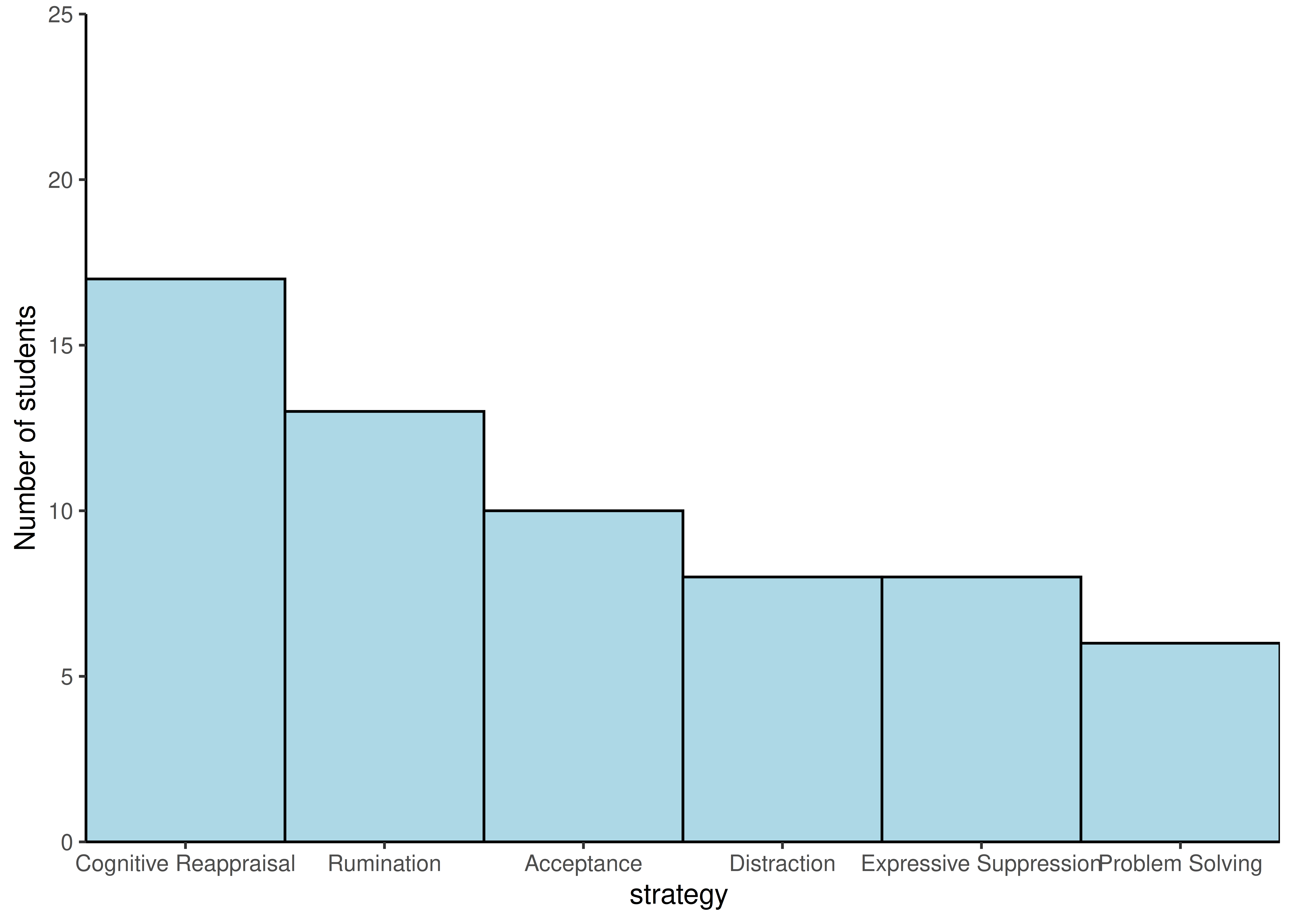

Reorder the categories in strategy by the the value in freq:

ggplot(data = strategy_data,
       aes(x = reorder(strategy, freq, decreasing = TRUE),
           y = freq)) +
  geom_col(width = 1,
           colour = "black",
           fill = "lightblue") +
  scale_x_discrete(expand = c(0, 0),
                   name = "strategy ") +
  scale_y_continuous(expand = c(0, 0),
                     name = "Number of students",
                     limits = c(0, 25)) +
  theme_classic()

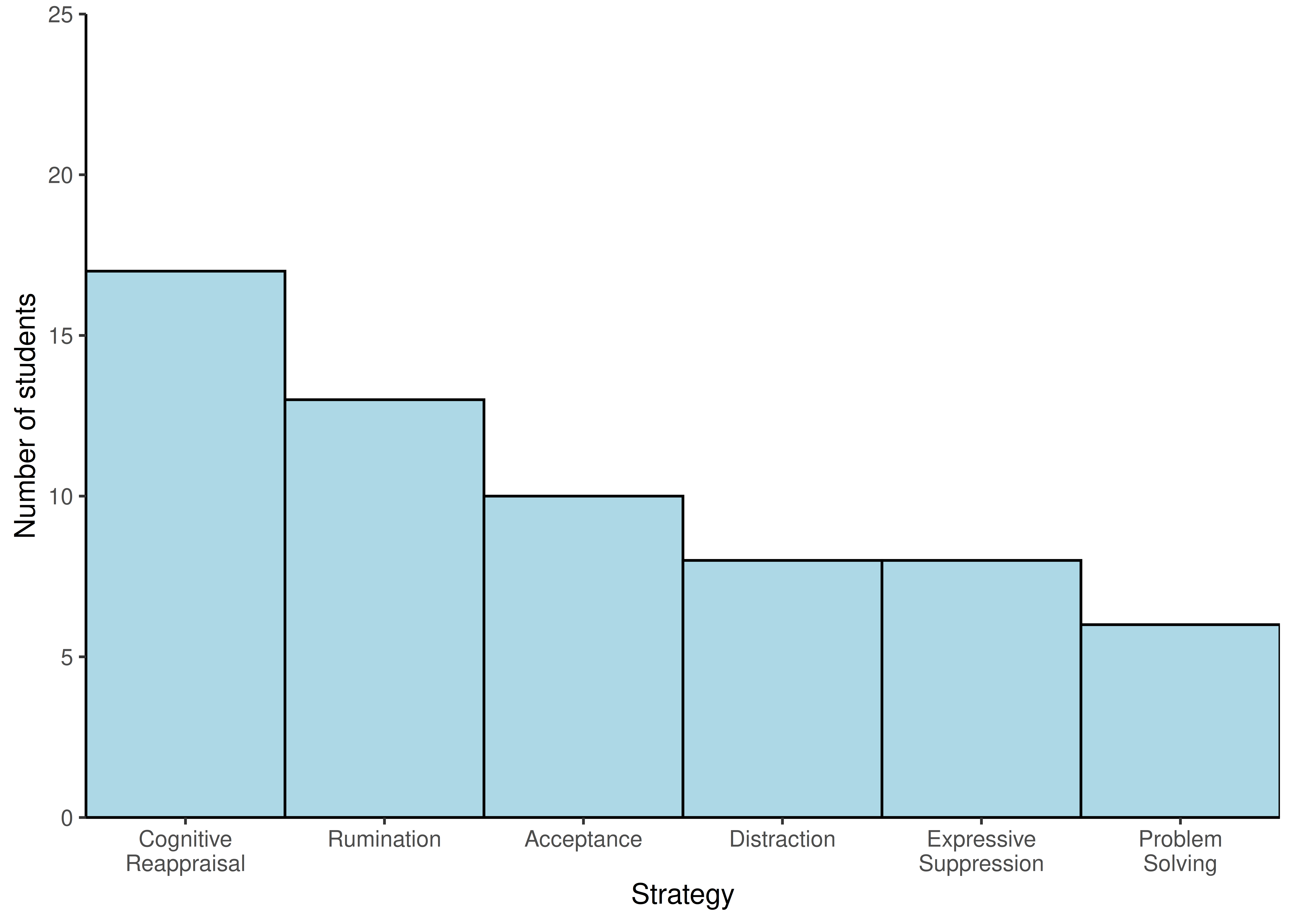

We have one more thing to do before we finish. The overlapping category labels are not great. One solution for this is to add “wrapping” to the labels so that they are not too long. We can use the scales package function label_wrap(10) to do this.

Add labels = scales::label_wrap(10) to the scale_x_discrete() command.

strategy_data <- data.frame(strategy, freq)
ggplot(data = strategy_data,
       aes(x = reorder(strategy, freq, decreasing = TRUE),
           y = freq)) +
  geom_col(colour = "black", fill = "lightblue", width = 1) +
  scale_x_discrete(name = "Strategy",
                   expand = c(0, 0),
                   labels = scales::label_wrap(10)) +
  scale_y_continuous(name = "Number of students",
                     expand = c(0, 0),
                     limits = c(0, 25)) +
  theme_classic()

The number is the maximum number of characters in a line before it wraps to the next line.

Return to the workshop page.

References

Wickham, Hadley. 2016. “Ggplot2: Elegant Graphics for Data Analysis.” https://ggplot2.tidyverse.org.

Wickham, Hadley, Mara Averick, Jennifer Bryan, Winston Chang, Lucy D’Agostino McGowan, Romain François, Garrett Grolemund, et al. 2019. “Welcome to the Tidyverse” 4: 1686. https://doi.org/10.21105/joss.01686.

Footnotes

There are also scale_x_continous() and scale_y_discrete() functions when you have those types of variable↩︎
Modify components of a theme ↩︎
