Bioinformatics:

Some easy wins and a roadmap to competency

Emma Rand, University of York

Summary

  • About me

  • Reproducibility, Why script?

  • About you

  • Easy wins

  • Key, often untaught, concepts

  • Roadmap to competency

About me

About me

logo for R ForwardsCloud-SPAN

About me

  • Teach data analysis and reproducibility in analytic pipelines predominantly to those who do not see themselves as programmers

  • Training Early Career Researchers

  • Encourage people to code

  • Promote programming competence as learned, not innate

Why script?

Reproducibility is key!

Also see

  • The Turing Way “Definitions for Reproducibility” (Community 2022)

Reproducibility is key!

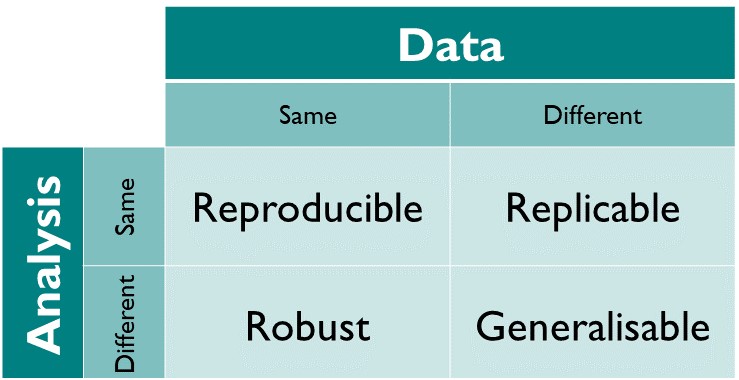

Two by Two cell matrix. Columns are Data, either same or different. Rows are Analysis either same or different. Each of cells contain one of the definitions for reproducibility

The Turing Way’s definitions of reproducible research

You are your first collaborator!

Person working at a computer with an offstage person asking 'How is the analysis going?' The person at the computer replies 'Can't understand the date...and the data collector does not answer my emails or calls' Person offstage: 'That's terrible! So cruel! Who did collect the data? I will sack them!' Person at the computer: 'um...I did, 3 years ago.'

futureself, CC-BY-NC, by Julen Colomb

Why does it matter?

  • Five selfish reasons to work reproducibly (Markowetz 2015). Alternatively, see the very entertaining talk

  • Many high profile cases of work which did not reproduce e.g. Anil Potti unravelled by Baggerly and Coombes (2009)

  • Will become standard in Science and publishing e.g OECD Global Science Forum Building digital workforce capacity and skills for data-intensive science (OECD Global Science Forum 2020)

It’s science!

via GIPHY

Be nice to future you!

via GIPHY

About you!

Go to https://www.menti.com/ and enter code 2172 3625

QR code

You are not alone!

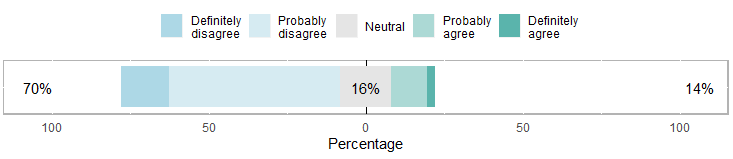

Expectations of Stage 1 Biologists about Data Analysis.

Responses to the question “I will enjoy data analysis”

figure for a likert scale question, with the options: Definitely Disagree, Probably Disagree, Neutral, Probably Agree, Definitely Agree. 70% of responses Definitely or Probably Disagree categories. 16% are nuetral

Likert response

You are not alone!

Nobody wants to learn to code. They just want to kick ass.”

Picture of James with a beard and wearing a cap

James Long rstudio::conf 2019. Putting empathy in action Building a ‘community of practice’ for analytics in a global corporation.

I don’t do any coding…

.and I’m not about to start!

You can still make steps towards reproducibility

Easy wins

  • Organise your data (Wickham 2014; Broman and Woo 2018)

  • Describe your data with metadata

  • Use a Project-oriented workflow with file and folder structure

  • Name things carefully

Organise your data

  • Use Tidy format (Wickham 2014)

    • variables in column and observations in rows.

    • One observation per row.

    • One thing per cell

    • Rectangular

E.g., 40 measurements of interorbital width (in mm) for two populations of domestic pigeons measured to the nearest 0.1mm

Photo of a domestic pigeon, head on, with an arrow showing the distance between the eyes.

Interorbital width is the distance between the eyes

Not Tidy

A B
12.4 12.6
11.2 11.3
11.6 12.1
12.3 12.2
11.8 11.8
10.7 11.5
11.3 11.2
11.6 11.9
12.3 11.2
10.5 12.1
12.1 11.9
10.4 10.7
10.8 11.0
11.9 12.2
10.9 12.6
10.8 11.6
10.4 10.7
12.0 12.4
11.7 11.8
11.3 11.1
11.5 12.9
11.8 11.9
10.3 11.1
10.3 12.2
11.5 11.8
10.7 11.5
11.3 11.2
11.6 11.9
13.3 11.2
10.7 11.1
12.1 11.6
10.2 12.7
10.8 11.0
11.4 12.2
10.9 11.3
10.3 11.6
10.4 12.2
10.0 12.4
11.2 11.3
11.3 11.1
  • not clear what the columns are

  • makes it look like there is a relationship between pairs of values

Tidy

population distance
A 12.4
B 12.6
A 11.2
B 11.3
A 11.6
B 12.1
A 12.3
B 12.2
A 11.8
B 11.8
A 10.7
B 11.5
A 11.3
B 11.2
A 11.6
B 11.9
A 12.3
B 11.2
A 10.5
B 12.1
A 12.1
B 11.9
A 10.4
B 10.7
A 10.8
B 11.0
A 11.9
B 12.2
A 10.9
B 12.6
A 10.8
B 11.6
A 10.4
B 10.7
A 12.0
B 12.4
A 11.7
B 11.8
A 11.3
B 11.1
A 11.5
B 12.9
A 11.8
B 11.9
A 10.3
B 11.1
A 10.3
B 12.2
A 11.5
B 11.8
A 10.7
B 11.5
A 11.3
B 11.2
A 11.6
B 11.9
A 13.3
B 11.2
A 10.7
B 11.1
A 12.1
B 11.6
A 10.2
B 12.7
A 10.8
B 11.0
A 11.4
B 12.2
A 10.9
B 11.3
A 10.3
B 11.6
A 10.4
B 12.2
A 10.0
B 12.4
A 11.2
B 11.3
A 11.3
B 11.1

Tidy data

Easier to summarise, analyse and plot because the organisation matches the conceptual structure of the data:

  • it is more obvious what the variables are

  • it is more obvious that there is no relationship between any of the pigeons

  • functions are designed to work with variables in columns

Metadata

  • data about data

  • what the data files are

  • relationship between file and treatments

  • what the variables are

Project-oriented workflow

  • use folders to organise your work

  • you are aiming for structured, systematic and repeatable.

  • inputs and outputs should be clearly identifiable from structure and/or naming

  • Have a readme file that gives an overview of the project

  • E.g., RStudio Projects

Example

-- liver_transcriptome/
   |__data
      |__raw/
      |__processed/
   |__images/
   |__code/
   |__reports/
   |__figures/

Naming things

A comic figure is looking over the shoulder of another and is shocked by a list of files with names like 'Untitled 138 copy.docx' and 'Untitled 243.doc'. Caption: 'Protip: Never look in someone else's documents folder'

documents, CC-BY-NC, https://xkcd.com/1459/

Naming things

Guiding principle - Have a convention! Good file names are:

  • machine readable

  • human readable

  • play nicely with sorting

I suggest

  • no spaces in names

  • use snake_case or kebab-case rather than CamelCase or dot.case

  • use all lower case except very occasionally where convention is otherwise, e.g., README, LICENSE

  • ordering: use left-padded numbers e.g., 01, 02….99 or 001, 002….999

  • dates ISO 8601 format: 2020-10-16

  • write down your conventions

-- liver_transcriptome/
   |__data
      |__raw/
         |__2022-03-21_donor_1.csv
         |__2022-03-21_donor_2.csv
         |__2022-03-21_donor_3.csv
         |__2022-05-14_donor_1.csv
         |__2022-05-14_donor_2.csv
         |__2022-05-14_donor_3.csv
      |__processed/
   |__images/
   |__code/
      |__functions/
         |__summarise.R
         |__normalise.R
         |__theme_volcano.R
      |__01_data_processing.py
      |__02_exploratory.R
      |__03_modelling.R
      |__04_figures.R
   |__reports/
      |__01_report.qmd
      |__02_supplementary.qmd
   |__figures/
      |__01_volcano_donor_1_vs_donor_2.eps
      |__02_volcano_donor_1_vs_donor_3.eps

I don’t do any coding…

… but I might want to to start

There are some key, but often untaught, concepts

Key, often untaught, concepts

About you!

Go to https://www.menti.com/ and enter code 2172 3625

QR code

File systems

  • A file system is made up of files and directories organised in a hierarchical way.

  • Directory is the old word for folder but commands that act on folders in most programming languages and environments reflect this history

File systems

At the top level there is a directory called home/; Inside home/ are two directories (docs/ and programs/) and two files doc1.txt and image.jpg. Inside docs/ there is a file called doc2.txt and a directory called data/ which contains doc3.txt and doc4.txt. Inside programs/ are three .exe files

Figure 1: A file hierarchy containing 4 levels of folders and files. Figure adapted from (Rand, Emma et al. 2022).

Root and home directories

The hierarchy from the root - the top level is C: in Windows and / in Mac. Below that is the Users directory which has a folder for each user. Your home directory is named with your username inside the Users folder.

Figure 2: The hierarchy from the root. The top level is C:\ in Windows and / in Mac. Below that is the Users directory which has a folder for each user. Your home directory is named with your username inside the Users folder. Figure adapted from (Rand, Emma et al. 2022).

Working directory

  • The working directory of a program is the default location a program is using.

  • where the program will read and write files by default.

  • You have only one working directory at a time.

  • ‘working directory’, ‘current working directory’ and ‘current directory’ all mean the same thing.

File Paths

  • location of a file or directory

  • Paths appear in the address bar of your browser or file manager

  • We need to know a file path whenever we want to read, write or refer to a file using code rather than interactively pointing and clicking to navigate.

File Paths

  • In a file path, each directory is represented as a separate component separated by a backslash\  or a forward slash /.

  • Most systems use forward slashes but Windows uses backslashes1

A path can be absolute or relative depending on the starting point.

Absolute paths

  • An Absolute path contains the complete list of directories needed to locate a file on your computer from the root.

  • For example, the absolute path for the file called doc3.txt in the file system above would be /Users/user1/docs/data/doc3.txt on Mac and C:\Users\user1\docs\data\doc3.txt on Windows.

Relative paths

A relative path gives the location of a filesystem object relative to the working directory.

  • if your working directory was docs, the relative path for doc3.txt would be data/doc3.txt.

  • if your working directory was docs the relative path for abe.exe files would be ../programs/abe.exe.

../ allows you to look in the directory above the working directory and ../.. allows you to look in the directory two levels above the working directory and so on.

The hierarchy from the root - the top level is C: in Windows and / in Mac. Below that is the Users directory which has a folder for each user. Your home directory is named with your username inside the Users folder.

Figure 3: The hierarchy from the root. Figure adapted from (Rand, Emma et al. 2022).

Use relative paths

  • Most of the time you should use relative paths because that makes your work portable.

  • You only need to use absolute paths when you are referring to filesystem outside the one you are using.

What they forgot to teach you about computers

Computational Analysis for Bioscientists (Rand 2023)

Quiz

Summary

  • Reproducibility matters, especially to future you

  • Scripting makes your work more reproducible because everything is written down

  • But… You don’t have to learn to code to make steps towards reproducibility

  • Understanding file systems, working directories and paths is key for learning to code
